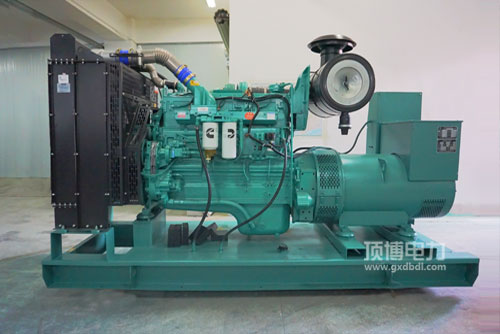

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打着机柴油经济能力性好: 比较好的的柴油设定软件化，具有的STC、ESTC 定级设定软件化，唯一性来设计的柱塞上边进行汽缸，各类高压喷洒柴油，充沛做雾化，进行复燃充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用热车机瞬态使用性能非常好: 更好的热车机大体方案，配合康明斯奇特的EFC体系，把握gps精度就越高，死机时间间隔快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用启因素升电功率高: 产品设计的紧凑型suv.外型装置合理可行，工作市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50充分考虑我国非路段第一阶段中，及亚洲Tier2. Tier 3排放量标准规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具而犯性好， 起行为工作及运营的保养便于，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率的范围 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯并网发电用打着机的特色：密度小， 压缩视频比较高， 防雨百叶冷空气升温，有利于无法，手机端车机开关电源的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起行为规格型号	常常用电率(kW)Prime Power	后备电源输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
